eScore™ Outdoor Package

Description

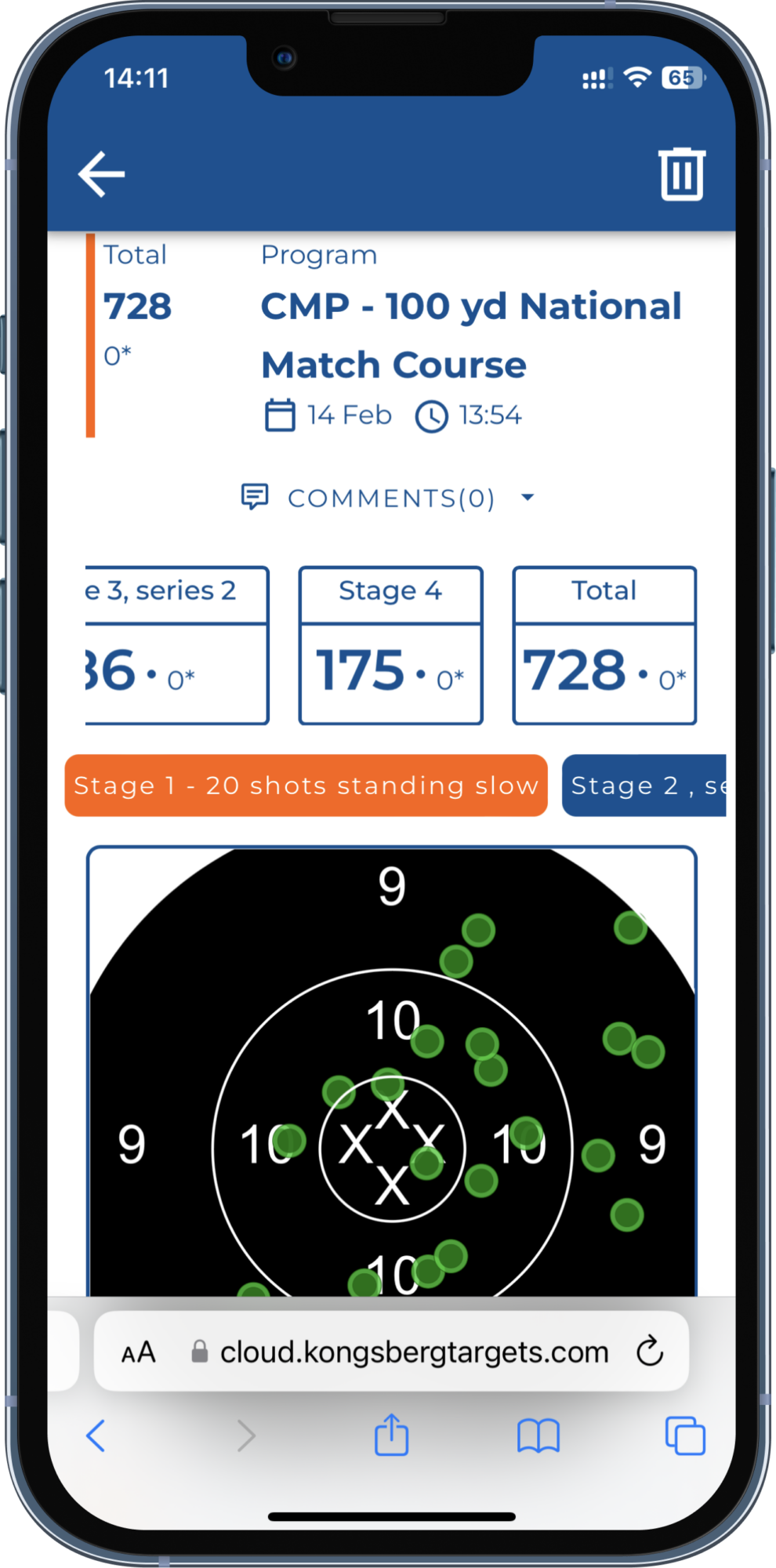

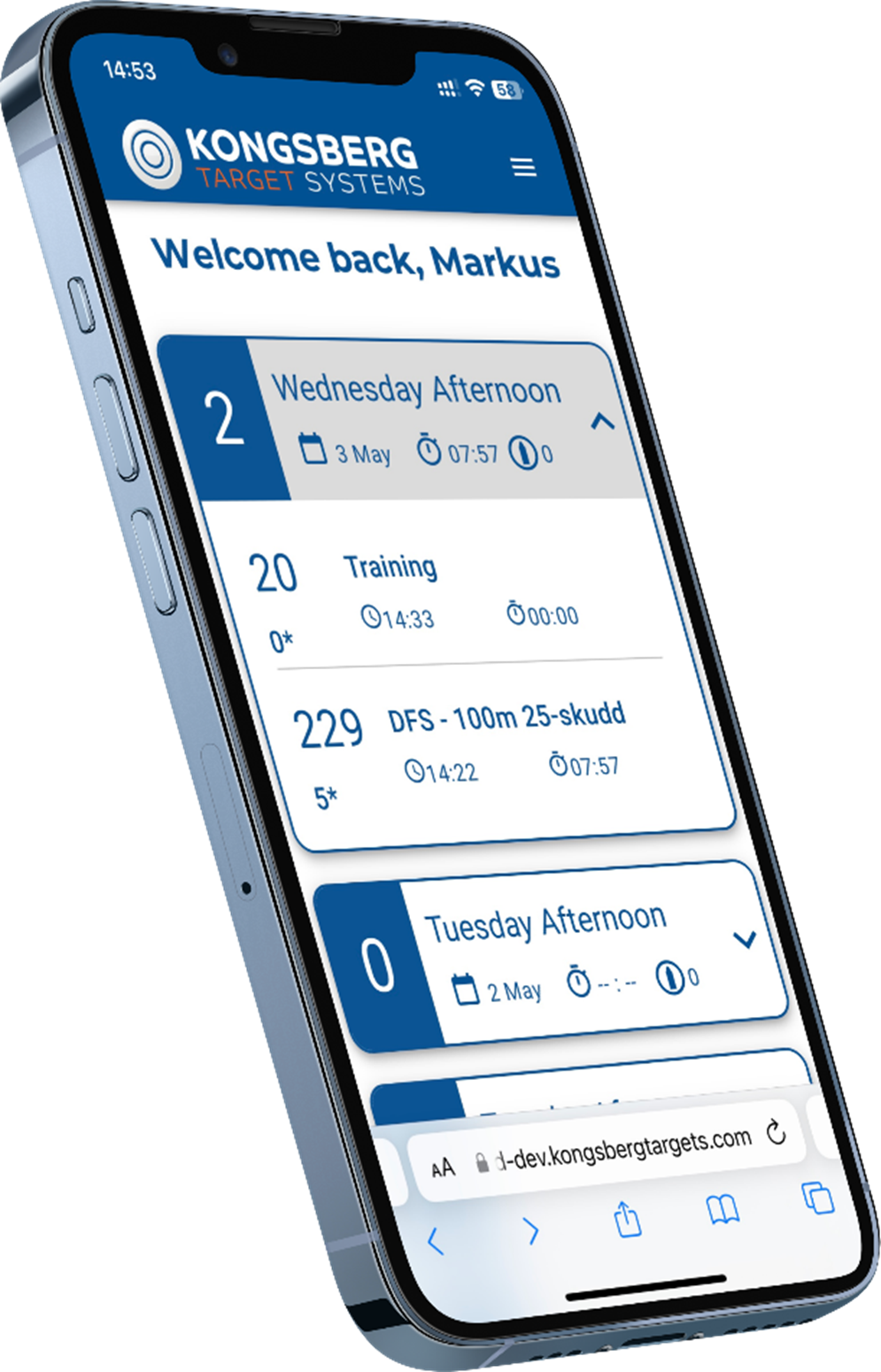

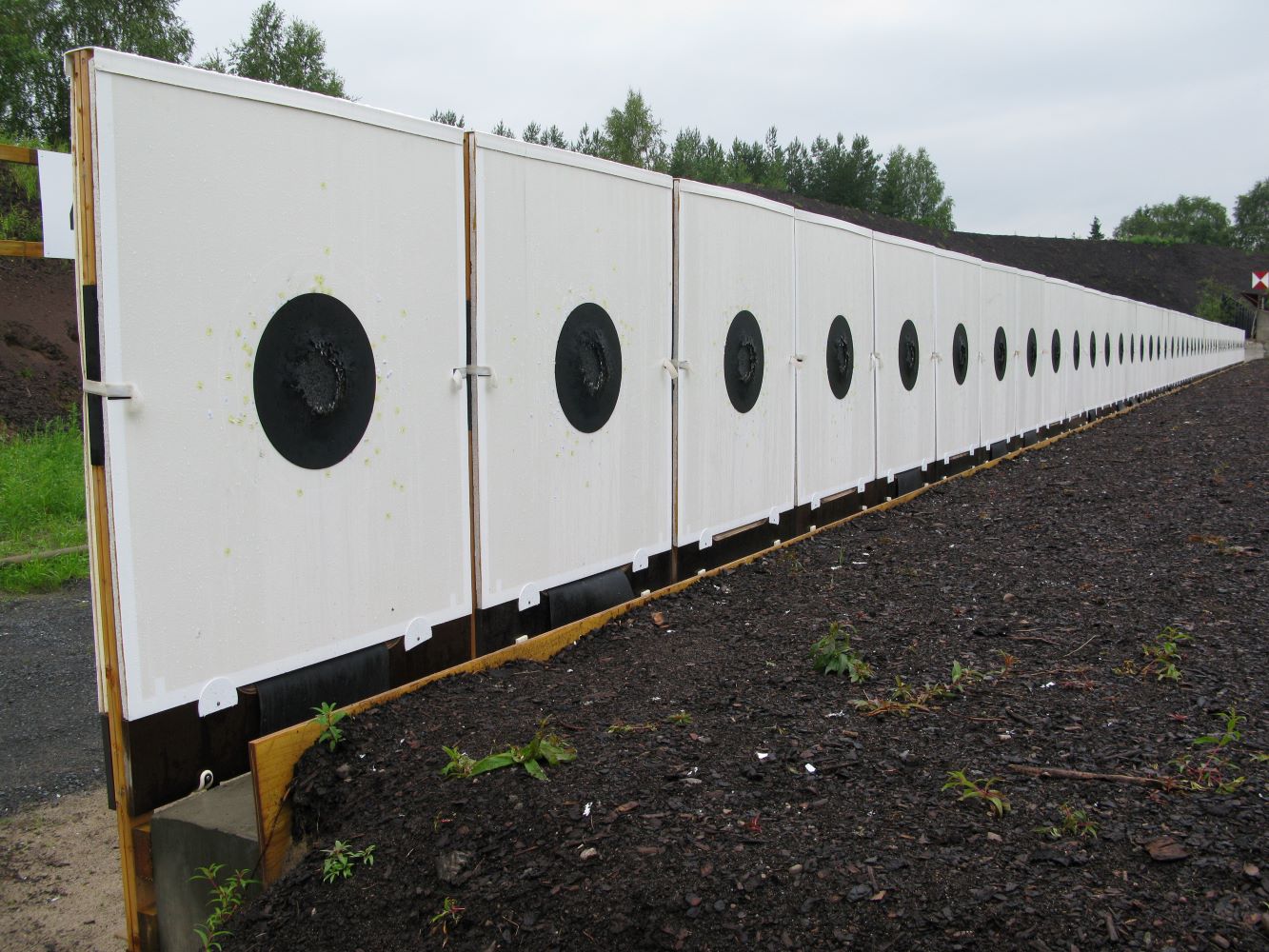

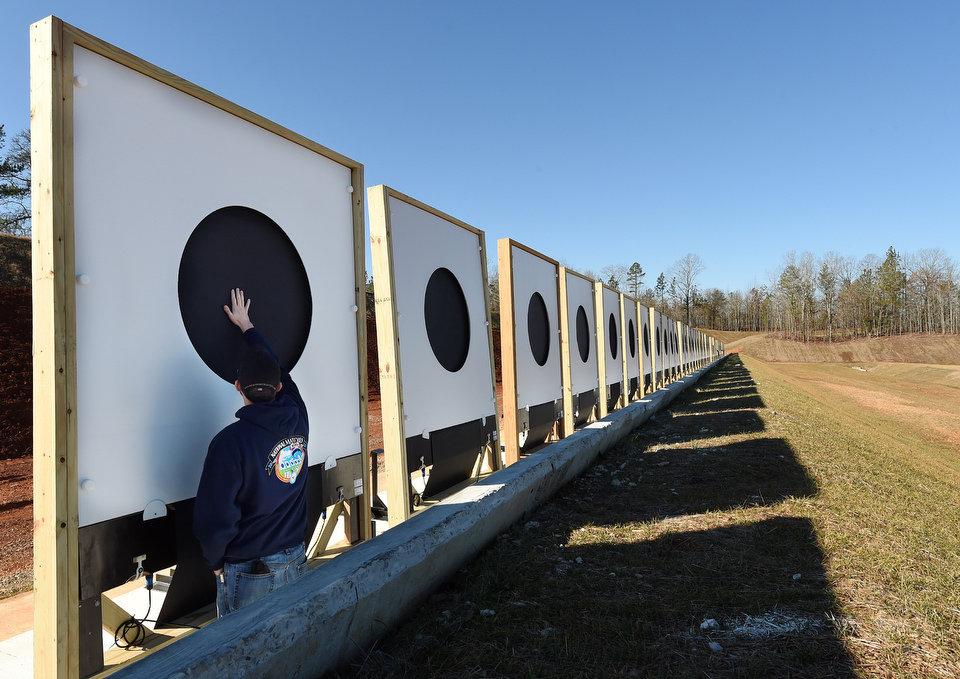

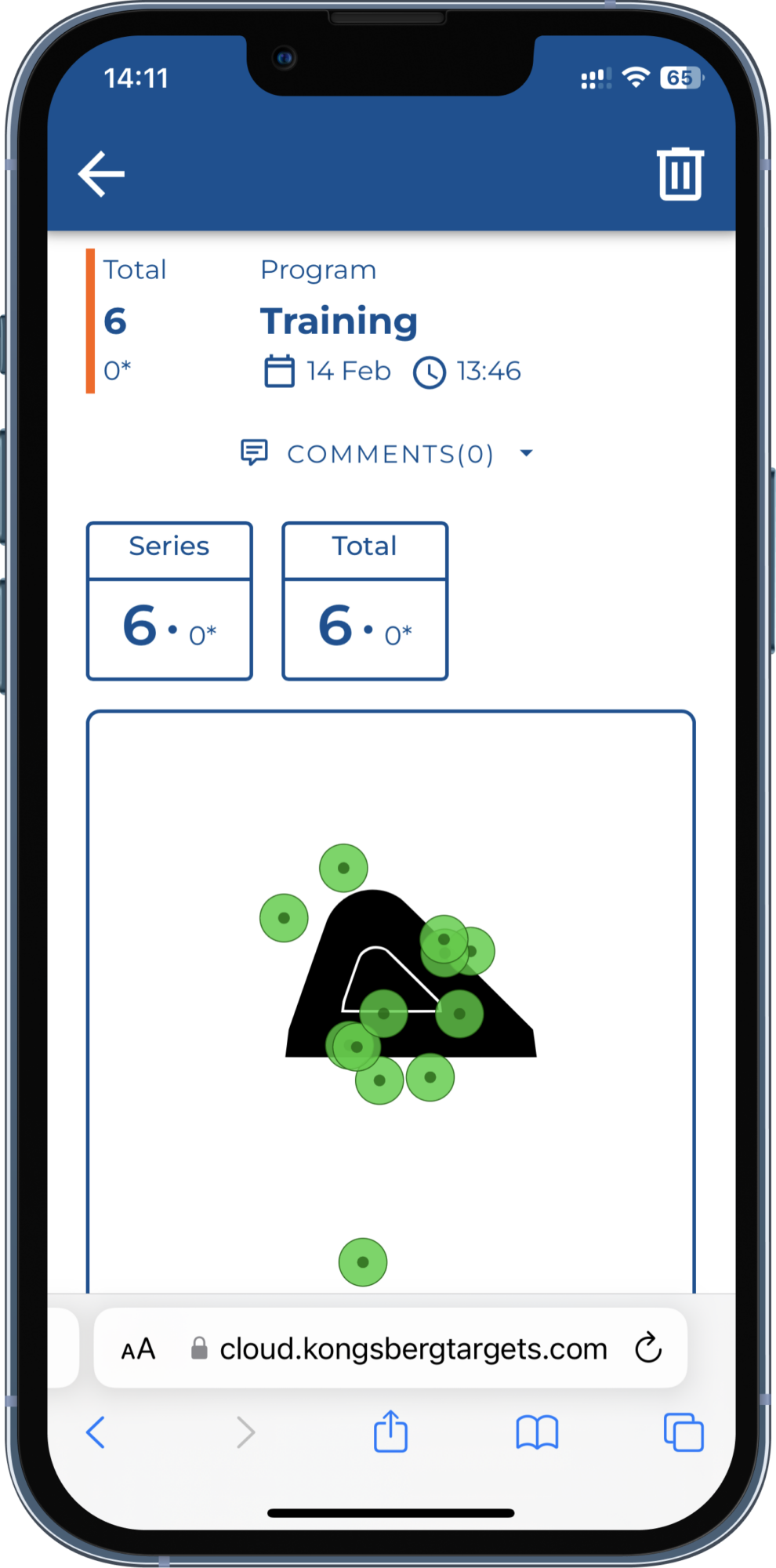

The package is suitable for all ranges and can be extended up to 32 targets. The package can be delivered with 2 different targets; H3A or U5A. H3A has sensors in all corners and is extremely accurate (ISSF Level 1 approval pending). U5A has 3 sensors at the bottom of the target is more robust and all electronics can be protected from stray bullets. The package is delivered with cabinets on both the Target Line and Firing Line and must be powered by mains power. The system is delivered with an eHub, which adds functionality such as storage of results, competition setup, connection to Internet, maintenance information, remote management, distribution of results over internet and shooters journal. Target cables are delivered in a standard length of 5 meters, the antenna cables are delivered in a standard length of 10 meters.

• Ranges: 100 – 600 meters
• Outdoor

Setup

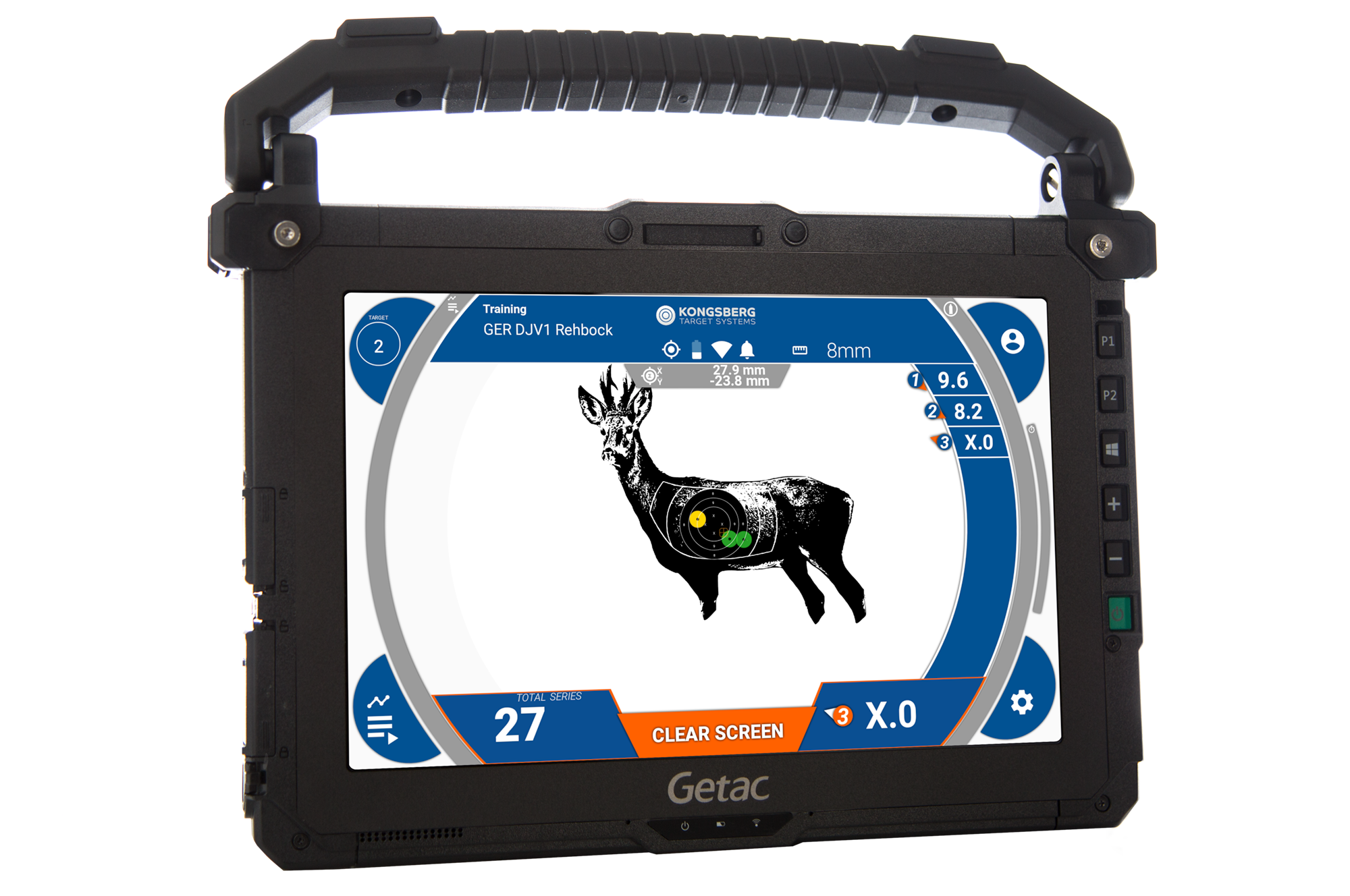

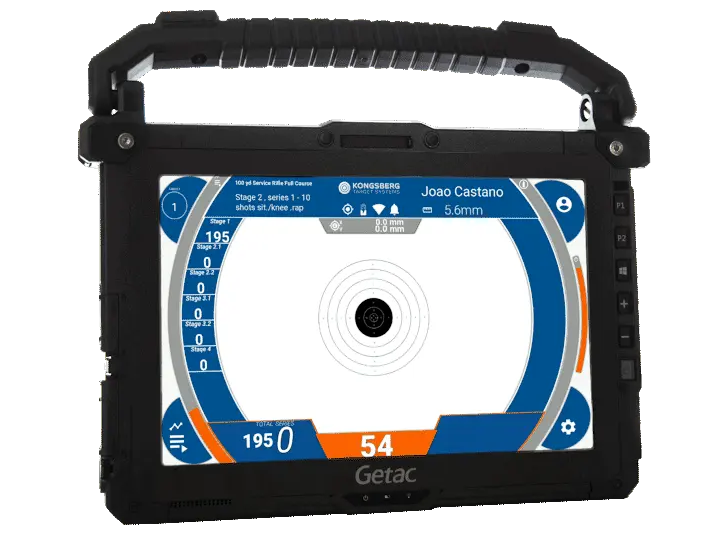

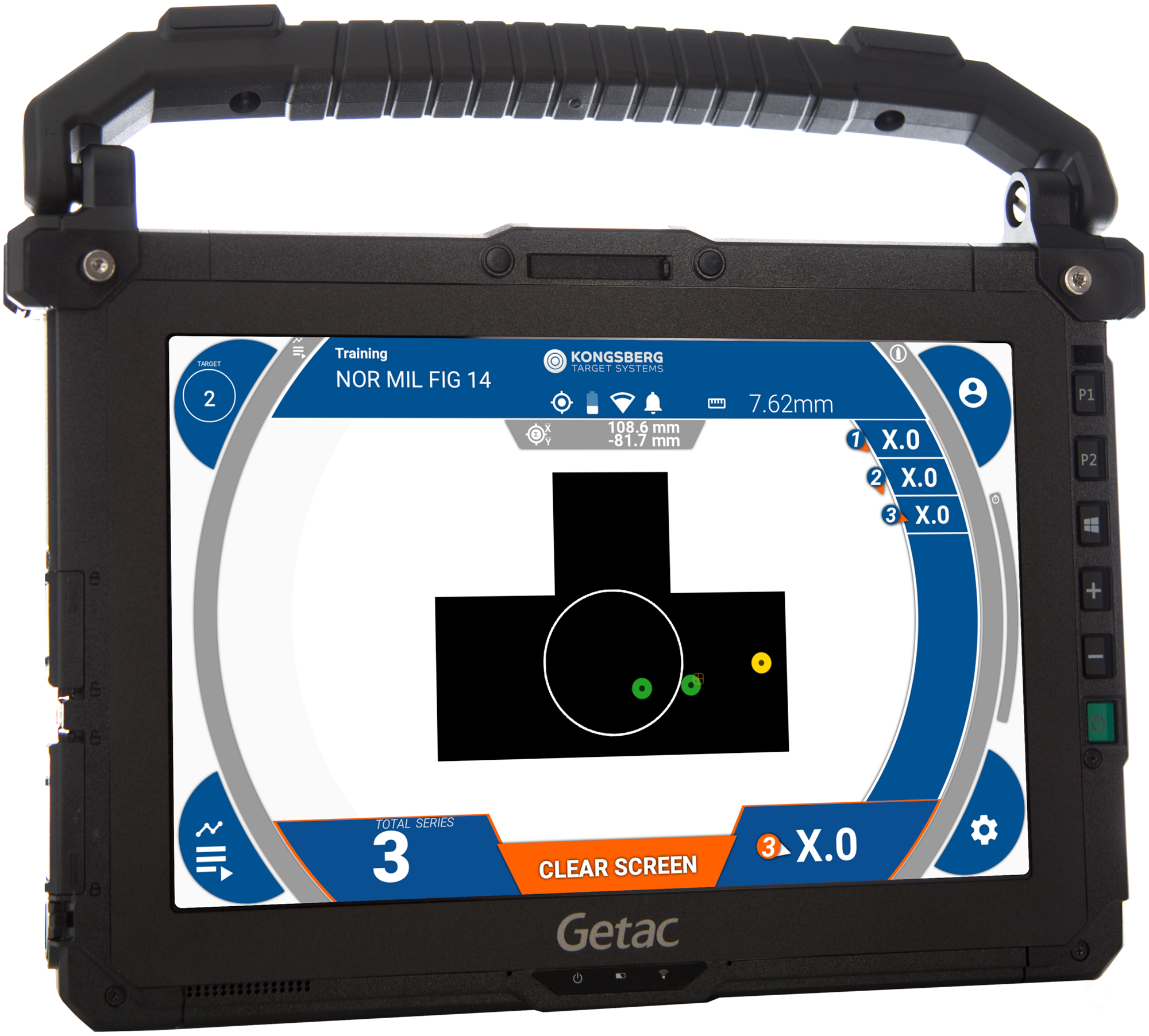

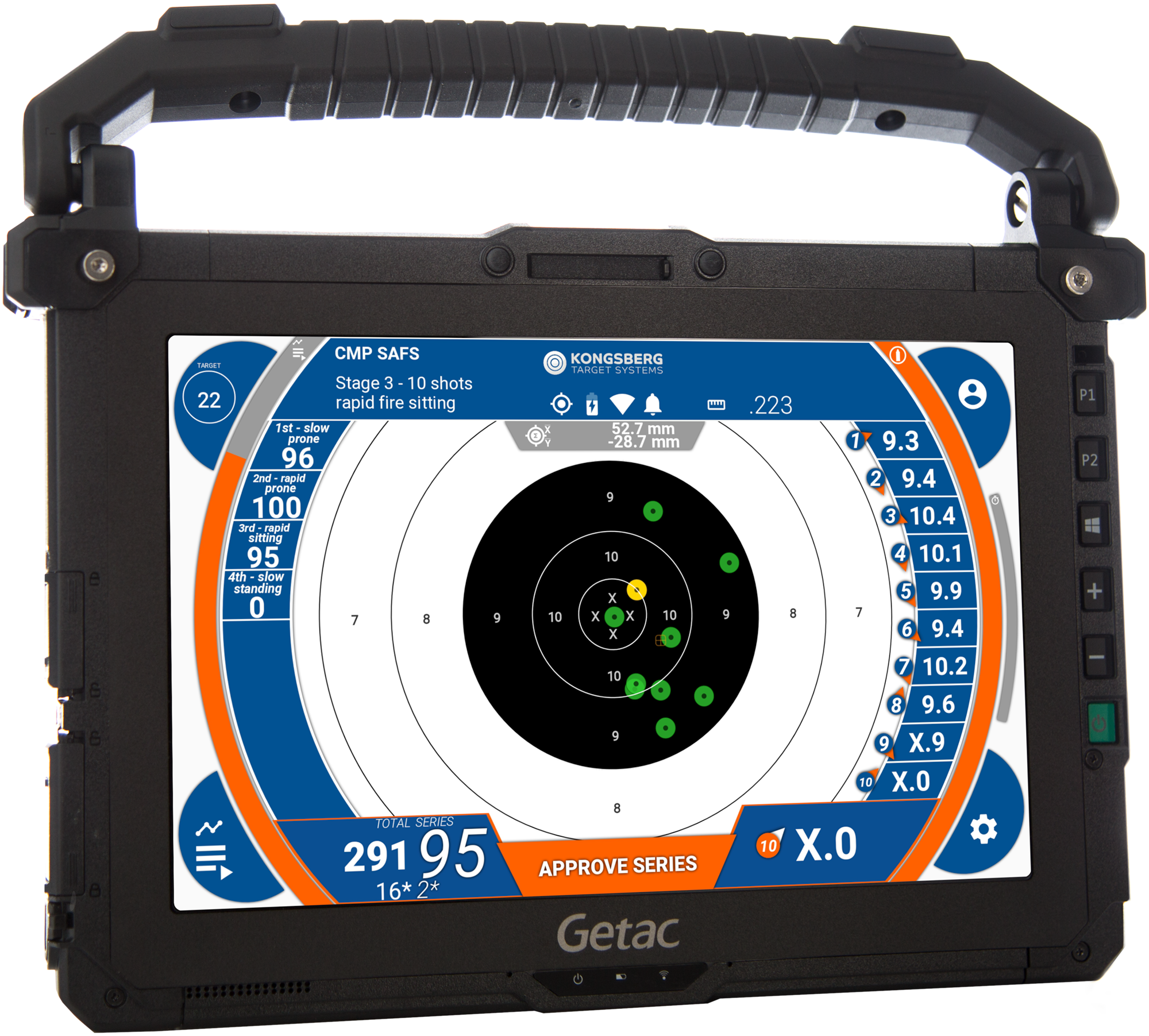

The system is easily setup by connecting the cables between the targets, antennas and the cabinets. The antenna sets up a Wifi link between the Target and Firing Line and a Wifi network covering the Target Line. The monitor connects to the Wifi network and the eMonitor application connects to the target and the system is ready to be used.
